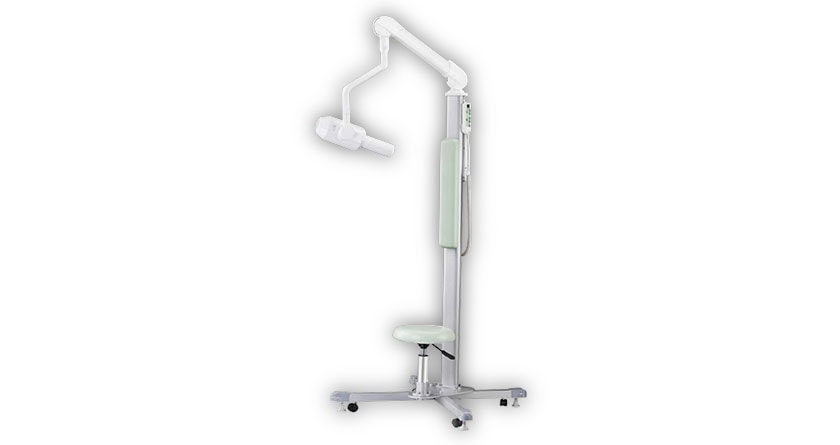

Precise time control: microprocessor technique enables the exposure time to be measured to the nearest one-hundredth of a second, and is shown as a digital readout. The mobile x-ray also can give an accurate readout of any warning with the error code display function. The x-ray parameters can easily be modified or reset, and the unit can be upgraded to use a digital film unit by using the digital shooting mode, and it is compatible with any digital sensor.
| Power voltage | AC220 ± 10% |
| Frequency | 50/60Hz |
| Electric current | 4A |
| Max power consumption | 900VA |
| Fuse | 6.3A |
| X-Ray plugs | Standard 3 electrode |
| Focus | 0.8mm |
| Anode angle | 19° |
| Tube voltage | 70kV ± 10% |
| Anodic electric current | 7mA ± 10% |
| Load cycle | 1/60 |
| Total filtration | ≥ 2.1mmAL |
| Inherent filtration | ≥ 0.5mmAL |
| Half value layer | 1.6mmAL under 70kV |
| Radiation leakage | 1m < 0.07mGy / h |
| Connection | coaxial plug - it can be rotated horizontally as well |
