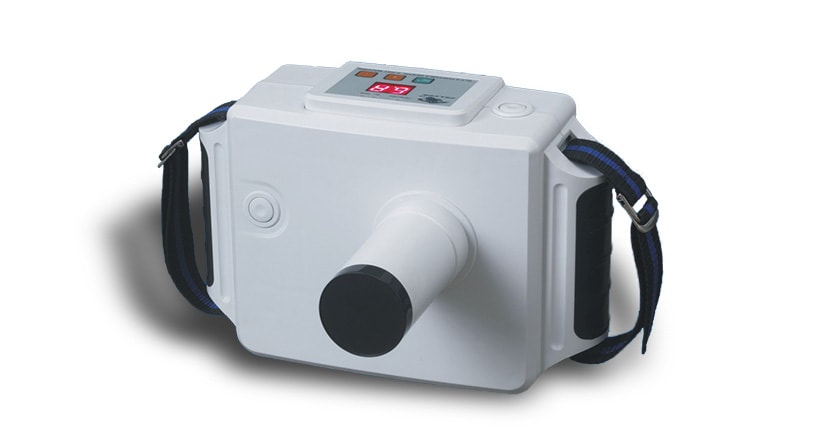

Portable Wireless Dental X-Ray Generator

Benefits

• No protective operation room is needed when installing the complete machine
• Flexible adjustment of the position and angle of the handled unit, simple and easy to use
• Develop the dental images in daylight, no need for a darkroom
• Compact in volume, light in weight - convenient for carrying
• Adjustable exposure time, high picture contrast, well focussed images
• Can be used with a digital sensor
• Radiation levels are in accordance with international standards (IEC 601-1-3:1993)

Technical Specifications

Power (V)	24V, 8000mA
Charger	220V/110V, 50Hz	Tube Voltage	70kV
Tube Current	0.1 mA	Rated Power	60w
Frequency	30kHz	Weight	2.2kg
Time of Exposure	1 - 9s	Environmental Temperature	5-40°C
Radiation Leakage	< 20 µ gy/h	Relative Humidity	< 80 %
