Compared to i-Sync 1, i-Sync 2 can be better applied to a wider range of X ray systems, since it's trigger sensitivity has been increased by 60%. Even the least powerful mobile system can perfectly trigger an acquisition for the thickest patient - no need to worry about losing image resulting from the panel failing to track the weak exposure.

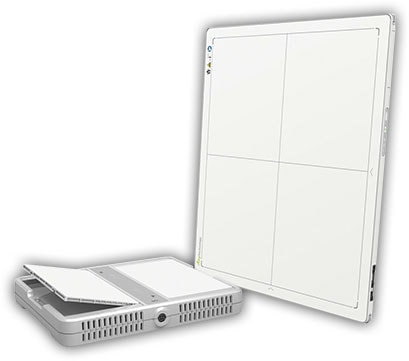

With a simple magnetic charging connector it is extremely easy to keep the panel charged and never need to replace the battery. One additional ethernet interface makes it easy and fast for the panel to switch between wireless and wired mode.

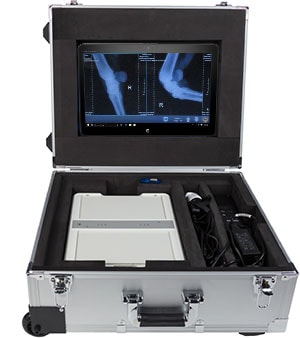

The Vet Extras DR System could be conveniently connected to one Windows mobile device, without any additional AP or router, which brings about easier and higher efficiency digital imaging.

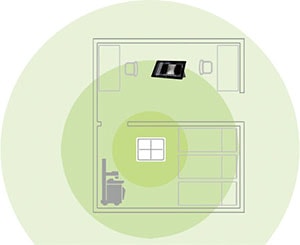

With Mimo technology, the Wi-Fi signal's ability to pass through walls has been greatly improved
The Vet Extras Digital System has been equipped with a unique drop monitoring system, which serves as a real time tracker of panel dropping and shocking. Do you want to know if your employees handle your equipment carefully or not? Well, choose us!
At least 500 exposures and 4 hours working time for each recharging of the DR system, which leads to only 2 minutes to replace the battery and restart the panel. We promise you a faster workflow.
Batter charger can charge two batteries simultaneously, which ensures you 2 full batteries ready all day long without interrupting the workflow.
| Detector technology | Amorphous Silicon |
| Scintillator | GOS/CSI (Directly Deposit) |
| Active area | 14" x 17" |
| Pixel pitch | 150μm |
| Number of pixels | 2304 X 2800 (GOS) / 2288 X 2784 (CSI) |
| AD Conversion | 14 bits |
| Image acquisition time | < 5 sec for full image |
| Data Interface | WIFI / Ethernet |
| Detector Control | WIFI / Ethernet |
| Trigger Mode | i-Sync 2 / Software |
| Wireless Mode | 2.4G / 5G, with internal AP |
| Internal Image Storage | 200 full size images |
| Battery | >4h (Full performance) |
| Shock Tolerance | High |
| Water Proof | IPX2 |
| Drop Monitoring | Realtime |
| Limiting Resolution | 3.4 lp/mm |
| Accessories | Charging dock, Cables, Extra batteries |
| Operating Temperature | 5 ˜ 35 ° C |
| Storage Temperature | -20 ˜ 60 ° C |
| Operating Humidity | 10 ˜ 90% |
| Storage Humidity | 10 ˜ 90% |
| Dimensions | 384 X 460 X 15.4 mm 3.0kg approx |
| Weight | 3.7kg (GOS) / 3.6kg (CSI) |
| Power consumption | 12W (Full performance) |
| Adapter | AS input 100 ˜ 240V, 50 ˜ 60Hz |
The future of radiography starts here - for a faster workflow in your radiology department try Vet Extras' new DR system.
Extremely competitive pricing for a complete digital X-Ray package, check out the brochure and give us a call for full details.
